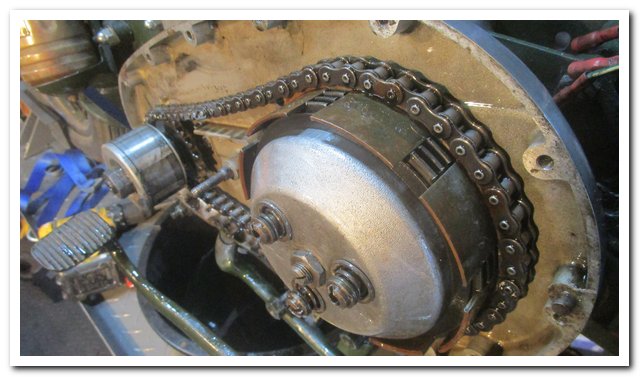

AFS G3 Clutch query |
|
|
| Description: |
Are there the correct number of plates in this clutch ? |
| Hits: |
1842 |
| Rating: |
Rating:9 Votes:2 (Rating Scale: 1 = worst, 10 = best)
|
| Added on: |
22 Jan 2018 |
| Posted by: |
P K Gray |
Large Picture: | Click here for high resolution image |
| Comments: |
2 Comment(s) | Rate this picture
|
By Rob Harknett
23 Jan 2018
|
FJRIGJWWE9R1PIC_RATING:COMMENTS check your parts list to discover if you have the correct number of plates. If OK but you cannot adjust the cable up OK Slacken off the cable adjuster. Now adjust the thrust rod via the centre screw on the clutch. That will screw in about the width of a clutch plate.
|
By derek cox7
28 Jan 2018
|
FJRIGJWWE9R1PIC_RATING:COMMENTS You have the same number of clutch plates as my home office G3, would suggest that the 3 clutch spring settings are not wound in far enough, mine are screwed in almost flush with the studs.
|
|
