SR1 Connections |
|
|
| Description: |
As several queries have been made on these connections, here is a pic.

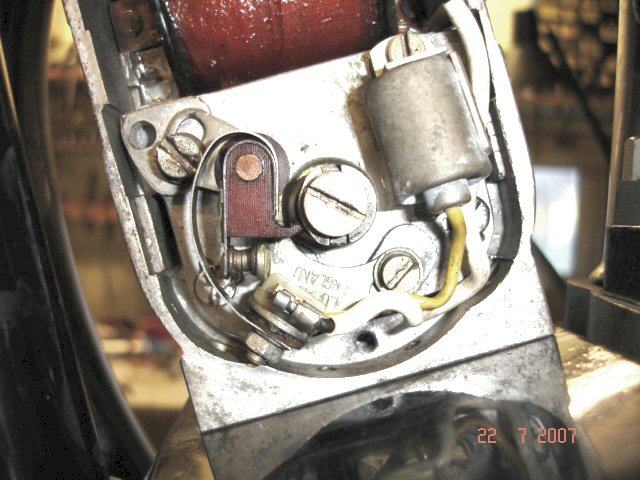

At the top, fibre washer between adjustable plate and moving contact, on pivot post. At the bottom, from bottom to top, Nut, washer,leaf spring,fibre washer,bracket on adjustable plate,nylon isulator, two wire connections, square head of bolt. |
