Picture: 1952 16MS Front Axle Assembly


Previous Next

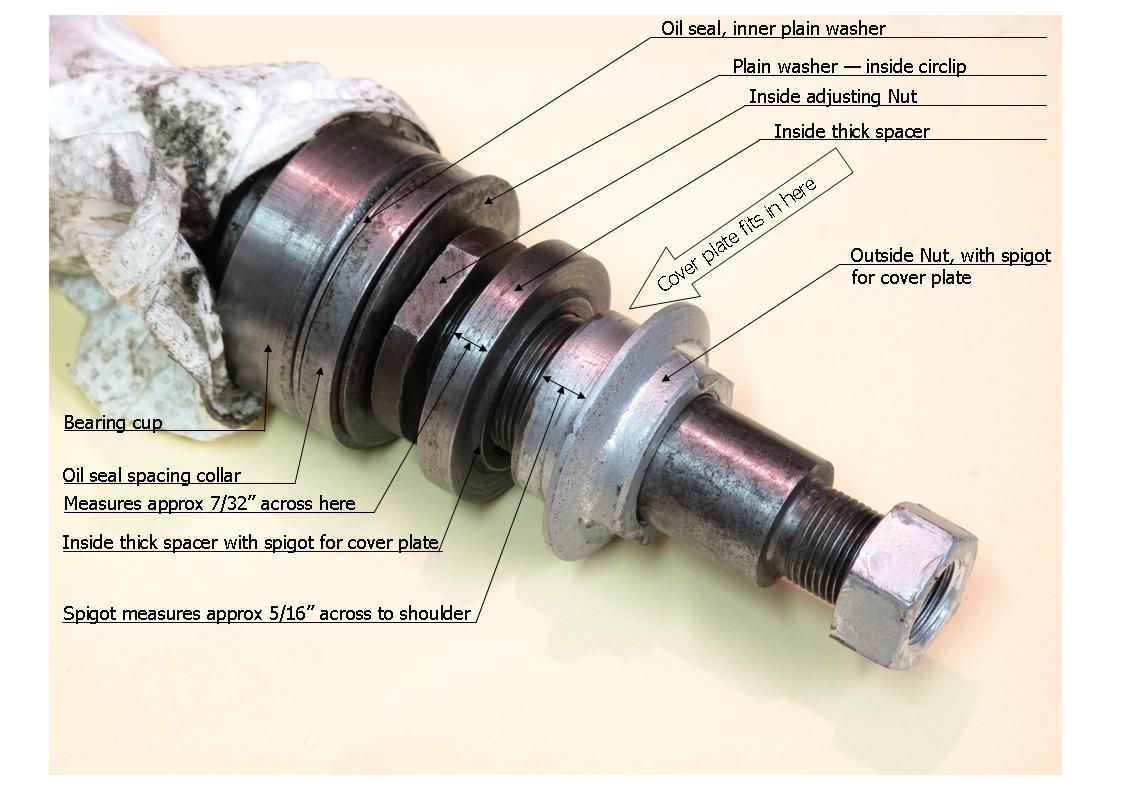

Description: Front axle assembly, the brake backing plate sits out too far off the drum when on the bike. I cant move the inside nut in far enough (it hits the plain washer) to allow the back plate to close the gap.
Seems to me that the Inside Thick Spacer is too thick, but this is how its always been.
Maybe some of these parts are from a different model? Any clues please?
Hits: 2274
Rating: Rating:10  Votes:2 (Rating Scale: 1 = worst, 10 = best)
Added on: 05 Aug 2010
Posted by: GrayKay
Large Picture:Click here for high resolution image
Comments: 2 Comment(s) | Rate this picture

By Ex-member
05 Aug 2010
FJRIGJWWE9R1PIC_RATING:COMMENTS
Wish I could do this .
By GrayKay
06 Aug 2010
FJRIGJWWE9R1PIC_RATING:COMMENTS
Easy Merlin, just have a passion for photography and a wish to be back on the road again...and use MS Publisher! But... do you have the answer? Cheers, Gray
